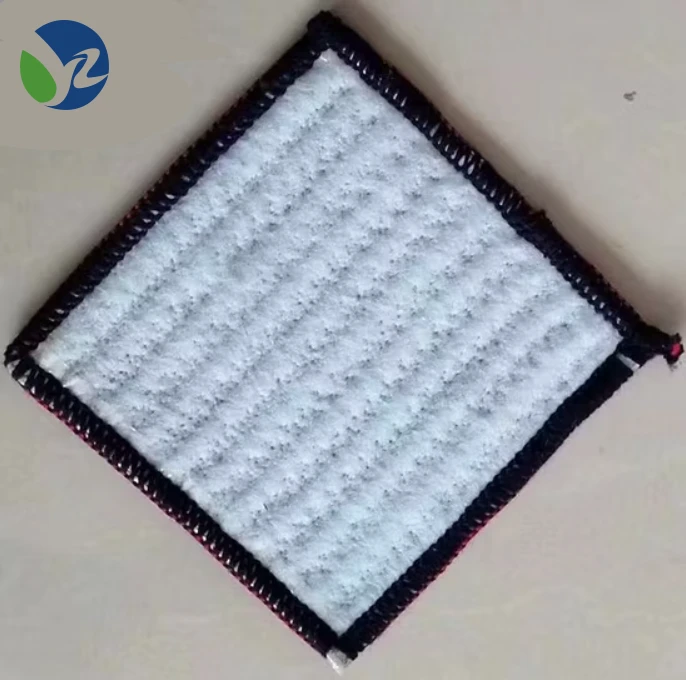

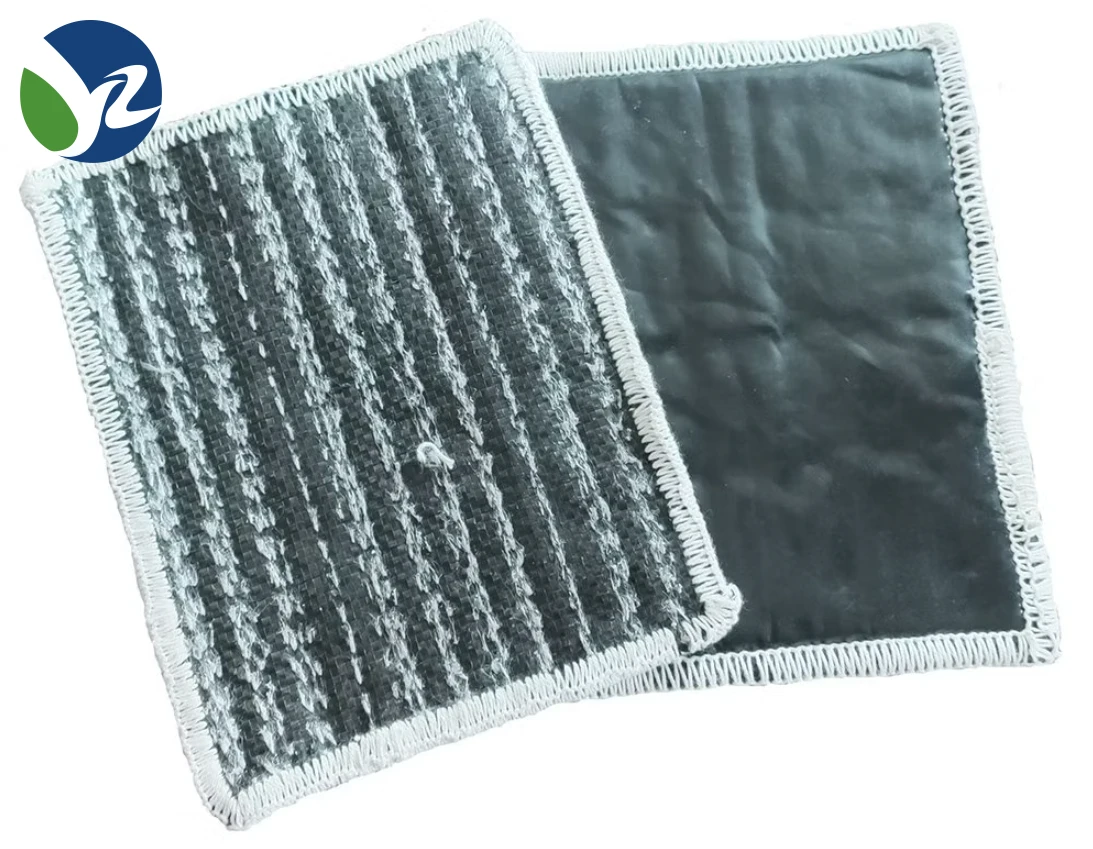

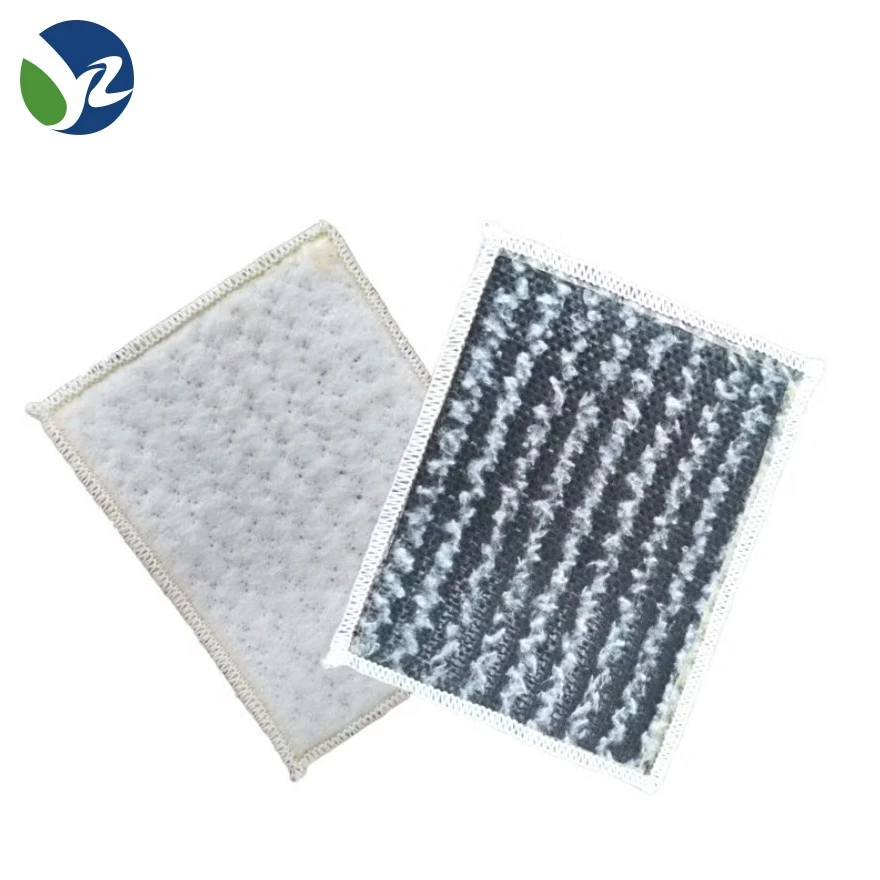

Bentonite Waterproof Blanket (GCL)
Bentonite waterproof blanket has the following characteristics:
1. Excellent waterproof and anti-seepage performance: the anti-seepage hydrostatic pressure can reach more than 1.0MPa, and the permeability coefficient is 5×10-9cm/s.
2. Good durability: sodium-based bentonite is a natural inorganic material, which will not undergo aging reaction and will not have adverse effects on the environment. It is an environmentally friendly material.
3. It has all the characteristics of geotextile materials: such as separation, reinforcement, protection, filtration, etc. The construction is simple and not limited by the construction environment temperature. It can also be constructed below 0℃.
4. Easy to repair: After the waterproof construction is completed, if the waterproof layer is accidentally damaged, a simple repair can restore the original waterproof performance.
5. High performance-price ratio: wide range of uses.
6. The product width can reach 6 meters: matching the specifications of international geotextiles (membranes), greatly improving construction efficiency.
7. Not affected by temperature: it will not break brittlely under cold climate conditions.
8. Good integration performance: Sodium-based bentonite has a 20-28 times expansion capacity when in contact with water. Even if the concrete structure vibrates and settles, the bentonite in the GCL can repair cracks on the concrete surface within 2mm.
9. Green and environmentally friendly: Bentonite is a natural inorganic material, harmless and non-toxic to the human body, and has no special impact on the environment.
Phone ：+8613210469718
WhatsApp : +8613210469718
Email : sales@sdyzgeo.com
Contact Us

Product Details


Projects/ Technical dataSpecifications
GCL-NPGCL-OFGCL-AH
Weight per unit area(g/m2)≥4000g/m2
Bentonie swell index(ml/2g）≥24≥24≥24
Ethylene blue absorption(g/100g)≥30≥30≥30
Tensile strength (N/100mm)≥600≥700≥600
Racking strength(N/100mm)
(for nonwovwn and woven fabric)		≥40≥40—
Racking strength(N/100mm)
(for HDPE films and nonwoven fabric)
≥30—
Permeability(m/s)≤5.0x110-11≤5.0x110-11
anti-static water pressur0.4Mpa,1h,0.6Mpa,1h,not seepage
not seepage
filtration loss (ml)≤18≤18≤18
Bentonite durability (ml/2g)≥20≥20

Product Application

Environmental Protection

Landfill Liners & Caps: GCLs are widely used as hydraulic barriers in municipal and hazardous waste landfills to prevent leachate contamination of soil and groundwater.

Containment Systems: They serve as secondary containment for tanks, ponds, and industrial facilities storing chemicals or pollutants.

Product Application

Water Management

Reservoirs & Canals: GCLs provide seepage control in water storage and transportation structures.

Decorative Ponds & Lakes: Used in artificial water bodies to retain water and prevent leakage.

Mining & Energy

Heap Leach Pads: GCLs act as liners in mining operations to capture toxic solutions (e.g., cyanide or sulfuric acid).

Oil & Gas Facilities: They prevent hydrocarbon leaks in storage areas and tailings ponds.

Product Application
Product Application

Infrastructure & Construction

Tunnel & Underground Works: GCLs provide waterproofing in tunnels and subway systems.

Road & Railway Embankments: Used as moisture barriers to enhance subgrade stability.

Agriculture & Aquaculture

Irrigation Canals: Reduce water loss through seepage.

Aquaculture Ponds: Ensure water retention in fish/shrimp farming ponds.

Product Application
Product Application

Erosion Control

Slope & Landfill Covers: GCLs combined with geotextiles stabilize slopes and prevent erosion.
