Product Details

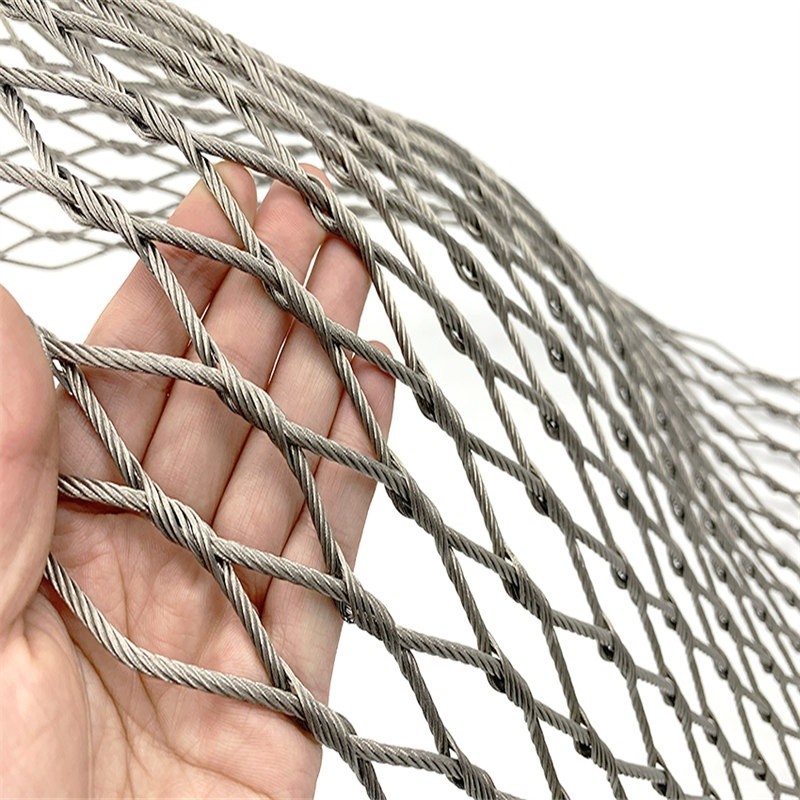

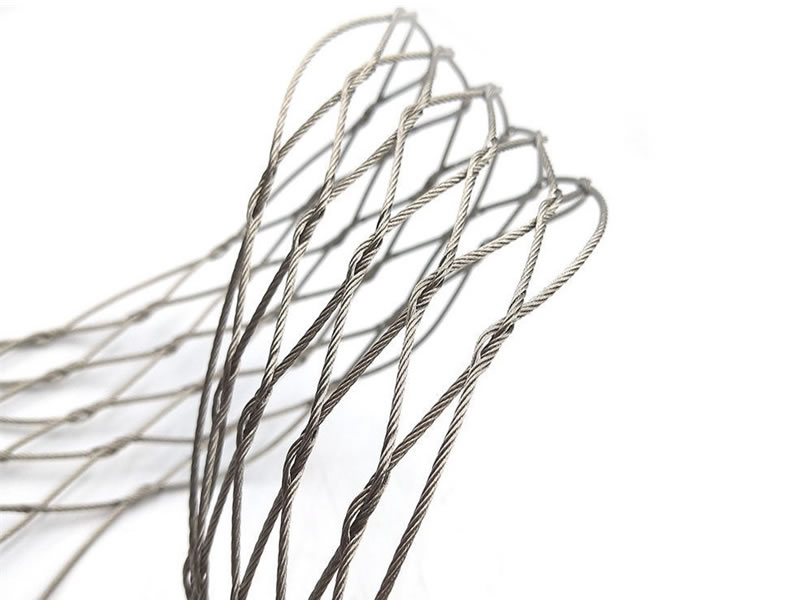

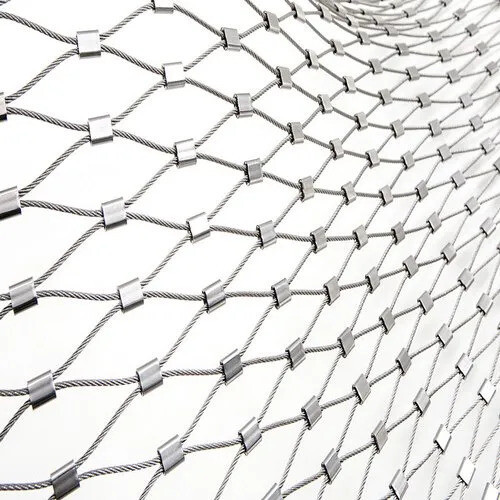

Stainless Steel Rope Mesh, also called Flexible Stainless Steel Cable Mesh, Stainless Steel Cable Mesh, Stainless Steel Wire Rope Mesh, it is produced of high quality stainless steel wire cable. It can be divided into ferrule type and inter-woven type by production crafts.Stainless steel cable mesh is made from stainless steel wire rope in various material type like AISI 304 , AISI 316 , AISI 316L etc. The selected wire rope has two main strand structures:7*7 and 7*19. Generally, when the diameter of the steel wire rope is less than 2.5mm, the strand structure is 7*7, and when it is longer than 2.5mm, the strand structure is 7*19. The ferrule material is usually stainless steel, sometimes aluminum, copper, and other materials are used. In addition, we can also oxidize or spray the surface of the stainless steel cable mesh according to customer needs.


Stainless Steel Rope Mesh For Sale

Stainless Steel Rope Mesh
TypeKnotted cable meshFerrule cable mesh
CombinationInter-woven

Seamless ferrule

Hole pattern90 degree diamond hole60 degree diamond hole
MaterialSS304, 316, 316L, etc
Cable diameter1 ~ 4 mm
Cable structure7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm)
Diamond size20 ~ 200 mm
Mesh OrientationHorizontal , Vertical
ApplicationBird net, zoo, greenhouse, airport, farm fencing, etc
PackingCarton, wooden box available, or as per your requirement


Cable diameterMesh opening sizeNominal break
inchmminchmmlbs.
1/83.24x4102x1021600
1/83.23x376x761600
1/83.22x251x511600
3/322.44x4102x102920
3/322.43x376x76920
3/322.42x251x51920
5/6423x376x76676
5/6422x251x51676
5/6421-1/2x 1-1/238x38676
1/161.63x376x76480
1/161.62x251x51480
1/161.61-1/2x 1-1/238x38480
1/161.61x125.4x25.4480
3/641.21-1/2x 1-1/238x38270
3/641.21x125.4x25.4270
3/641.24/5x4/520x20270

Note: Special size and specification can be customized.
