Product Details

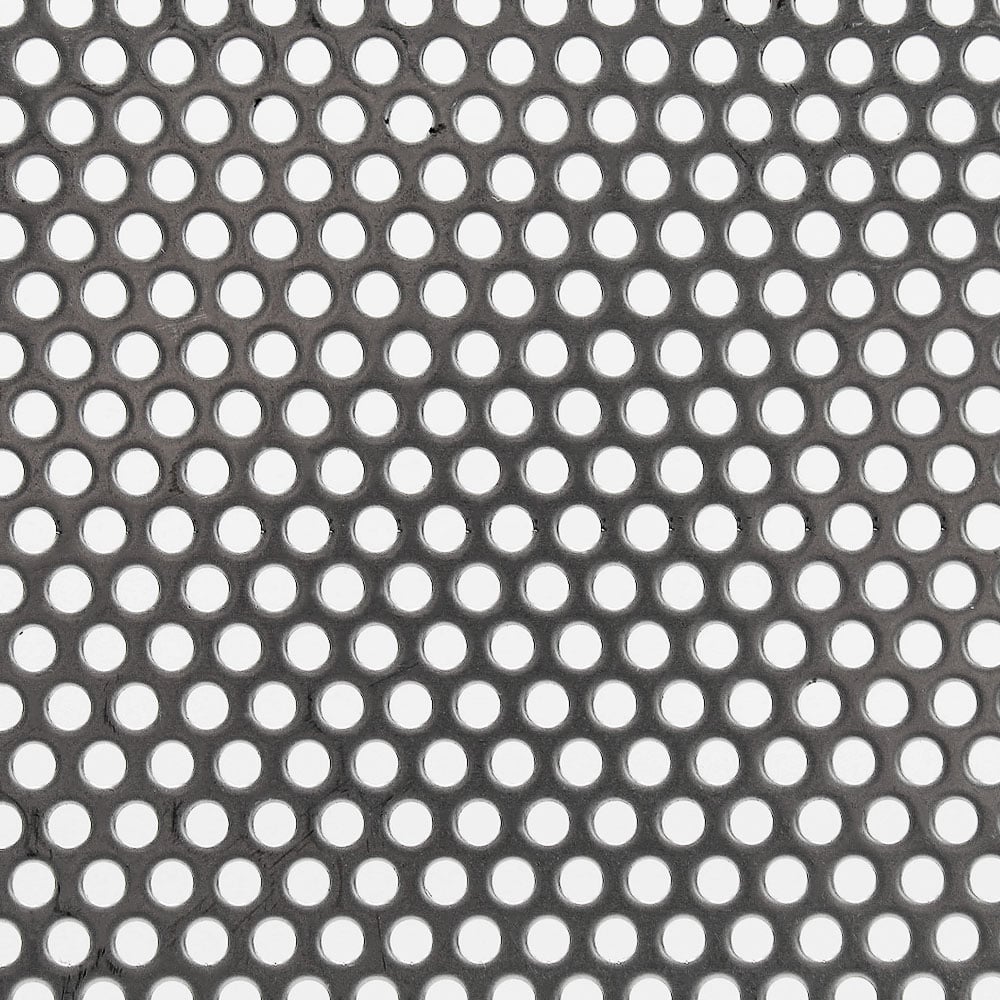

Perforated steel mesh is very attractive. This is because this metal has almost endless options in terms of hole shapes, sizes, geometric patterns, and surface finishes. When it is used in buildings, it not only adds visual interest but also maintains a degree of privacy.

Perforated Metal is broadly used in Industrial and Architectural applications such as; oil filters,grain sifters, sound isolation and ventilation.The round hole perforation is the most popular type of perforated pattern. We can cut to size to your specific requirements.Perforated metal is described by the hole size and the pitch. The pitch is the distance from the centre of one hole to the centre of the adjacent holes.


Perforated Steel Mesh For Sale

Perforated steel mesh
TypePlate, Roll
MaterialCarbon steel, Galvanized steel, Stainless steel, Aluminum steel, etc.
Thickness0.2 mm – 25 mm
Hole typeround hole, square hole, hexagonal hole, slotted hole, etc.
ApplicationCeilings of buildings; Sound-absorbing materials; Guards for machinery; Water filtration screens; Decorative hole plates, etc.


ROUND HOLES STAGGERED PATTERN
HOLECENTERSGAUGE / PLATETHICK.OPEN AREA
.020" RD.045" Stag2618%
1/32" RD1/16" Stag2223%
3/64" RD5/64" Stag2433%
3/64" RD3/32" Stag22 thru 1823%
1/16" RD3/32"Stag22 thru 1640%
1/16" RD7/64" Stag20 thru 1630%
1/16" RD1/8" Stag26 thru 1623%
5/64" RD1/8" Stag22 thru 1435%
3/32" RD5/32" Stag24 thru 1433%
3/32" RD3/16" Stag2423%
.117 RD5/32" Stag1851%
1/8" RD3/16" Stag24 thru 1140%
1/8" RD7/32" Stag14 thru 1230%
1/8" RD1/4" Stag14, 1323%
9/64" RD3/16" Stag1851%
5/32" RD3/16" Stag22 thru 1663%
5/32" RD1/4" Stag20 thru 1035%
3/16" RD7/32" Stag22 thru 1667%
3/16" RD1/4" Stag24 thru 1251%
3/16" RD5/16" Stag10, 3/16"33%
3/16" RD3/8" Stag14 thru 1023%
1/4" RD5/16" Stag20 thru 1658%
1/4" RD3/8" Stag26 thru 1/4"40%
17/64" RD5/16" Stag2066%
5/16"RD7/16" Stag20 thru 1/4"46%
3/8" RD9/16" Stag20 thru 1/4"40%
1/2" RD11/16" Stag20 thru 1/4"48%
1/2" RD3/4" Stag1640%
5/8" RD7/8" Stag10 thru 1/4"46%
3/4" RD1" Stag16 thru 1/4"51%
1" RD1-3/8" Stag10 thru 1/4"48%
1-1/4" RD1-5/8" Stag1/4"54%
1-1/2" RD2" Stag1/4"51%
2" RD2-1/2" Stag1/4"58%
2-1/2" RD3" Stag3/16"63%
3" RD3-1/2" Stag3/16"67%
4" RD4-1/2" Stag1072%

Note: Special size and specification can be customized.

Product Application

Product Packaging

产品展示

Factory Display

  • Factory Display
  • Factory Display
  • Factory Display
  • Factory Display
  • Factory Display
  • Factory Display
  • Factory Display
  • Factory Display
  • Factory Display
  • Factory Display

FAQ

Q1. Can you do OEM?

A1. Yes.of course.We can produce the products as per your request.

If you can offer samples to us,it will be more convenient.

Q2.How long does it take for delivery?

A2. Production lead time 5 days, and the delivery time will be discussed in detail according to the specific situation.

Q3. If I want to order a small quantity goods,can you do it?

A3. If the product you need we have stock available,that would be great,you can choose the instock goods.

but if not, don’t worry, we can take your order with our other clients’ order to be produced together.But it needs to wait some time .

Q4. How will you follow my order?

A4. When the goods are started to produce,we will take photos for the goods and send it to you.

If you find any production deficiencies,please contact us to correct it.

We will keep in touch with you in the whole production by e-mail or instant messaging, like Skype/Viber/WhatsApp, you can get the

latest news about your order.

After the goods are finish,we will take photos for the goods and packing to you before shipping.

Q5. What is your exporting countries?

A5. We have good sales performance and win good international reputation in more than 30 Countries and

regions,such as Japan, America, Australia,Russia, Canada,Middle East and so on.

Especially in the Middle East and Australia market.

Q6: Can you arrange the shipment for us?

A6: Yes, Our freight forwarders are through the company tender, signed long-term agreement, Price Service is the best. we have designated sea-freight and railway freight Forwarders with decades of experiences and we can get the best price with earliest vessel and professional services.
